- Size: 00x00
- Place of Origin: Qingdao,China
- Brand Name: Lanyu
- Model Number: TSGC2
- Weight: 10.000 kg

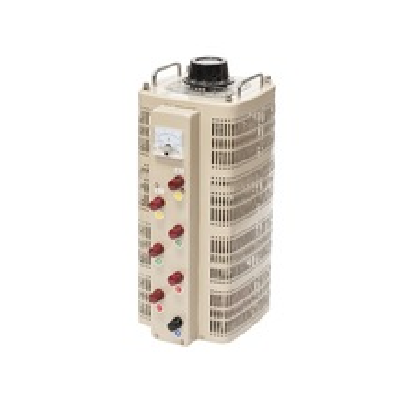

TSGC (2) Series regulator has a beautiful appearance, waveform distortion, small size, light weight, high efficiency, easy to use, reliable operation, superior performance, can be widely used in industry (eg chemical, metallurgy, instrumentation, electrical and mechanical manufacturing, dimming and power control purposes, is an ideal AC voltage power supply three-phase voltage regulator structure, three-phase voltage regulator assembly consists of three units of the same size from the shaft regulator winding connected to the star.
basic parameters of the regulator following table provides
regulator rated (output) capacity: regulator rated
Capacity is calculated as follows:
P = m12 * U2 * 10-3 (KVA)
Where: P- regulator rated output capacity (KVA)
m- phase, single phase m = 1; three-phase m = 3
I2- rated output current (A)
U2 maximum output voltage (V) (three-phase line voltage)
overload capacity, voltage regulator allows the output current exceeds the rated short time, but can not exceed the following table.
,Main technical characteristics
1.Fundamental
Regulator turns ratio is continuously adjustable autotransformer, by the action of the brush when the regulator hand wheel spindle and brush holder, polished surface sliding along the ring, you can continuously change the turns ratio, so that the output voltage is adjusted smoothly from zero to a maximum value.
2.The main structurea unit Festival: 0.2KVA 10KVA single phase voltage regulator to regulator for regulating cell structure, a polished surface of the upper end of a coil fixed certain width in engineering base, brush contact group under spring pressure polished surface coil in close contact, turn the hand wheel to drive the brush on the polished surface of the coil slide the regulator, the regulator is usually a desktop unit, outside the protective hood.
b Single-phase assembly structure: single-phase high-capacity regulator system assembled from several units from the same specification, the brush contact assembly of the units on the same axis, the coil is connected in parallel to the input terminal, an output terminal connected to balance reactor to the balance between the current distribution and inhibit circulation unit.
c Three-phase assembly structure: three-phase voltage regulator by means of coaxial assembled from three identical specifications
d brush structure:. 3KVA and below the unit regulator, using 1 to 2 graphite brushes and good metal cooling rack, 4KVA and more units regulator, using two copper-graphite composite brush, brush contact group fixed coil upper platen and limit its axial position, through the spindle locking screw, when it needs an overhaul, exchange or need major axis spindle extends from the bottom of the regulator when, just loosen the screws, you can convenient operation.
Working conditions1. The altitude does not exceed 1000m.
2. The ambient temperature is not higher than 40 ℃.
3. Air relative humidity less than 85%.
4. does not contain chemical corrosive gases and steam environment.
5. No explosive gas.
6. occasions against water intrusion.
7. Can not be used in parallel.
Dimensions
Rated Capacity | L1 (mm) | Width L2 (mm) | Long L3 (mm) | High H2 (mm) | Weight (Kg) |
1.5KVA | 120 | 135 | 145 | 300 | 7.5 |
3KVA | 125 | 135 | 155 | 300 | 7.8 |
6KVA | 170 | 210 | 210 | 480 | 25 |
9KVA | 200 | 240 | 260 | 480 | 35 |
15KVA | 230 | 260 | 290 | 550 | 55 |
21KVA | 230 | 260 | 290 | 630 | 66 |
24KVA | 230 | 260 | 290 | 655 | 70 |
