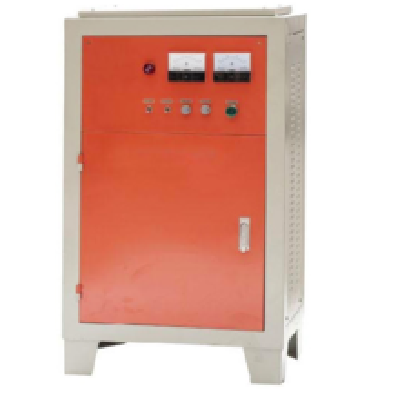

Product Usage

DC power applied to other places required plating, electrophoretic coating, electrolysis, aluminum oxide, rare earth smelting; suitable for direct current machines: resistance furnace, battery charge and discharge, graphite products, communication platform, high-power resistance welding machines.

Features

The use of advanced control technology, the master during the selection of high quality imported components, with high anti-interference ability, high control accuracy, good stability, product performance and reliable, long life; three-phase rectifier transformers five-column, six-phase or ten two-phase output no balance reactor, the thyristor power than the average 10%; chassis frame structure design, the electrostatic spray process, novel appearance, and has a strong acid, alkali and other corrosive gases the ability to control board sealed device, effectively ensure reliable operation of equipment; with automatic voltage regulator, steady flow function, accuracy ± 1%, the soft-start is adjustable from 0 to 180 seconds;

With the flow, phase, short circuit, overheating protection function; with native dual control remote control box, remote control with optional timer function, Ah function. An adjustable DC power supply, current continuously adjustable regulator and the steady flow of high-precision DC can be converted stable power supply, the output voltage from 0V smooth from the transfer, within the provisions of arbitrary choice, with a current limiting protection, short circuit protection, over temperature protection.

Structural principle

After the transformer from the rectifier transformers, and then by the thyristor bridge rectifier, capacitor filter plus the reactor is equipped with a high-performance six-phase, phased trigger board, smooth output, low ripple adjustable power supply. Cooling Forced air cooling or water cooling.

Product Specifications
Output DC current: 100 ~ 20000A optional
DC output voltage: 0 ~ 12V, 18V, 24V, 36V, 48V (can be customized according to customer requirements) maximum output 1000V
