Outline

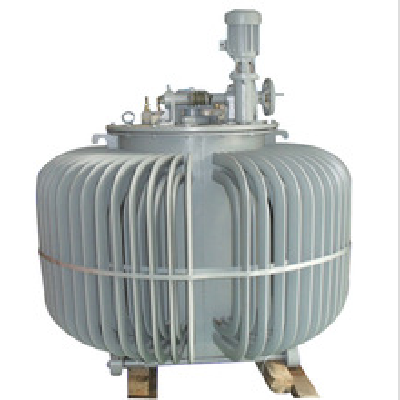

Induction voltage regulator can bring in loads, Promise, smooth, continuously adjustable output voltage of the power supply unit. The main test for electrical appliances, furnace temperature control, rectifier equipment support, generator excitation, etc., in the machinery manufacturing, chemicals, textiles, telecommunications, military, and other industries are widely used.

Performance
1. The non-contact conditioning, long life;
2. The nature of the load applied to a variety;
3. strong overload
4. reliable operation, easy maintenance.
Note: Single-phase 220V / 0-250V, 380V / 0-500V, three-phase 380V / 0-380 (420) V, 380V / 0-500V and other non-standard specifications can be manufactured according to customer requirements to undertake.
Technical parameters

Model	Rated Capacity (KVA)	Phase	Frequency   (HZ)	Rated input voltage  (V)	Rated output voltage  (V)	Rated output current   (A)	Dimensions  (Cm)	Weight  (Kg)
JSG-31.5	31.5	Single-phase	50	220 380	550 650	63  48.5	φ88×130	420
JSG-40	40			220 380	550 650	80  61.5	φ88×130	450
JSG-50	50			220 380	550 650	100  78.9	φ88×130	650  650
JSG-75	75			220 380	550 650	150  115.5	φ133×147	750
JSG-100	100			220 380	550 650	200  154	φ133×147	900
JSG-150	150			220 380	550 650	300  231	φ105×166	1150
JSG-200	200			220 380	550 650	400  308	φ127×171	1600
JSG-50	50	Three-phase	50	380 380	420 650	68.7 44.5	φ98×130	465  450
JSG-75	75			380 380	420 650	103  66.6	φ98×130	650
JSG-80	80			380 380	420 650	110  71.1	φ113×147	720
JSG-100	100			380 380	420 650	137  89	φ113×147	750  720
JSG-150	150			380 380	420 650	206  133	φ113×147	850
JSG-200	200			380 380	500 650	230.9  178	φ120×166	1400  1300
JSG-250	250			380 380	500 650	289  222	φ135×166	1600
JSG-315	315			380 380	500 650	363.7  280	φ142×171	1800
JSG-400	400			380	500	461.9	φ138×228	2850
JSG-500	500			380	500
