- Size: 00x00
- Place of Origin: Qingdao,China
- Brand Name: Lanyu
- Model Number: JMB
- Weight: 10.000 kg

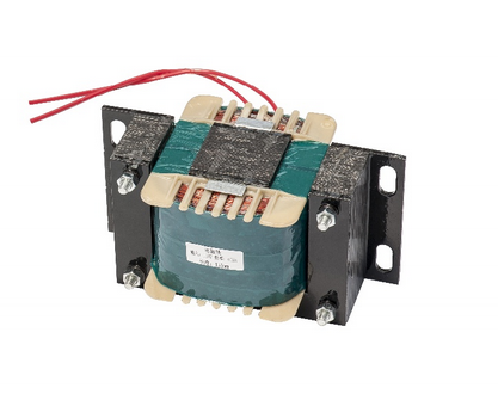

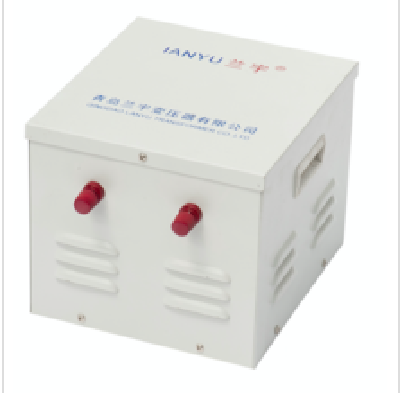

Adapted 50-60HZ AC circuit, it is widely used to control the power electronics industry or the mining industry, machine tools and machinery in general circuits, security lighting LED power supply purposes.
2.Type Meaning3.Technical characteristics
Separate primary and secondary windings wound, when only a secondary winding, it is responsible for all of the rated capacity of the transformer, the secondary as both control, lighting and light winding, press each winding capacity allocation were wound on a single winding and has a center tap of the transformer, the center tap of its capacity, are less than the rated capacity of the transformer, the maximum voltage output can only assume the rated capacity.
4.Adapt to the environmentThe transformer reliable operation under the following conditions
1. The altitude does not exceed 2500m;
2. The ambient air temperature: not exceeding the minimum of not less than 40 ℃ -25 ℃
3. Relative humidity: average maximum relative humidity of the wettest month of 90%;
4. No severe vibration and impulsive place;
5. In the absence of explosive medium, the medium does not enough to corrode metal box damage the insulation of gas and conductive dust areas;
6. place by rain and snow.
5.Product specifications and installation dimensions
| Specification (VA) | Rated input (VoltageV) | Rated output (VoltageV) | Dimensions(mm) |
| 25 | 220 | 6 | 150*160*130 |
| 50 | 220 | (6.3) | 150*160*130 |
| 100 | 220 | 12 | 150*160*130 |
| 150 | 220 | 24 | 160*170*135 |
| 200 | 220 | 36.48 | 160*170*135 |
| 250 | 200 | 110 | 180*170*155 |
| 300 | 380 | 127 | 180*170*155 |
| 400 | 380 | 220 | 210*230*175 |
| 500 | 380 | (330) | 210*230*175 200*175*175 |
| 700 | 220 | 6 | 218*290*185 |
| 1000 | 220 | (6.3) | 218*290*185 210*230*185 |
| 1500 | 220 | 12 | 260*290*235 |
| 2000 | 220 | 24 | 260*290*235 240*240*225 |
| 2500 | 220 | 36.48 | 280*350*230 |
| 3000 | 220 | 110 | 280*350*230 250*300*240 |
| 4000 | 380 | 127 | 360*355*280 |
| 5000 | 380 | 220 | 360*355*280 350*290*285 |
| 10K | 380 | (330) |
